Mistral panel 6/5/6

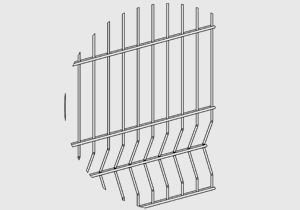

This unique double rod mesh fencing panel is made of galvanised wire, executed with a couple of 3D bends and coated with a polyester powder coating. This extra wide panel is a cost-efficient solution compared to the standard double rod mesh panel.

  • Saves 28% on the amount of poles and fixing material
  • Saves installation time as less panels are needed
  • Can be combined with all standard panels
  • Benefit per metre €4.00 compared to 2.5m panels

 Technical specifications

Diameter: vertical bar 5 mm, horizontal bars 2 x 6 mm (nominal value)
Panel lenght: 3.500 mm
Panel hight: 1.830mm / 2.030mm / 2.230 mm / 2.430 mm
Pitch: 50 x 200 mm
V-beams: 3 or 4 times
Standard colours: RAL 6005 and RAL 6009

Specifications of wire mesh panels made of galvanised wire

The panels have been galvanised according to EN 10244-2, Class D, with a minimum zinc layer of 40 g/m². The polyester powder coating has an average thickness of 100 µm.
